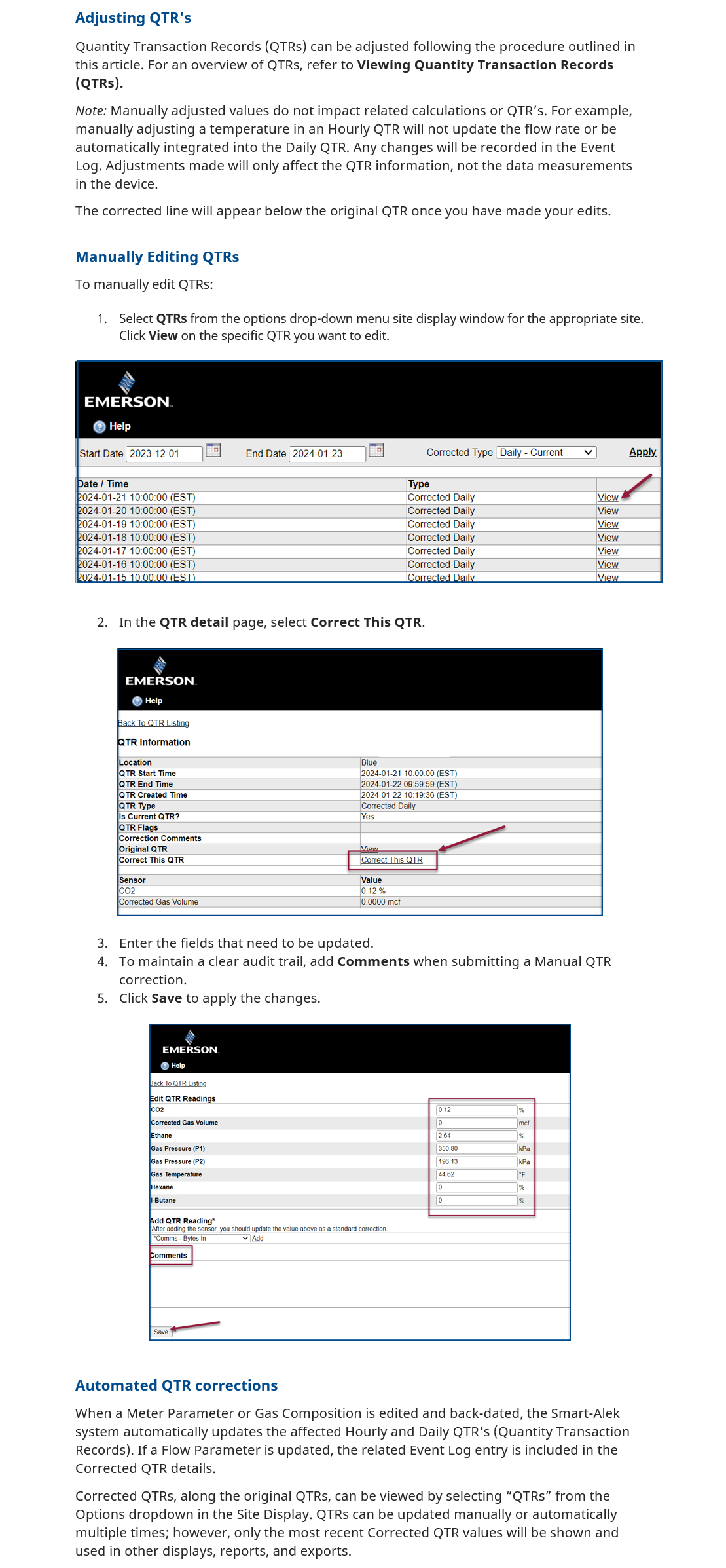

Adjusting QTR's

Quantity Transaction Records can be adjusted using the procedure given in this article. For details on what QTRs are, refer to Viewing Quantity Transaction Records (QTRs).

Note: Manually adjusted values do not affect related calculations or QTRs. For example, a manually adjusted temperature in an Hourly QTR will not cause an update to the flow rate, nor will it be automatically rolled up into the Daily QTR.

Any changes made will be noted and recorded on the Event Log. Changes made to the QTR will not affect data measurements that have been recorded by Smart-Alek; only the QTR information will be affected.

The corrected line will display below the original QTR after you have edited it.

Manually Editing QTRs

To manually edit QTRs:

1. Click QTRs on the Options Drop Down on the appropriate well in the Well Site Display window. Click View on the specific QTR you would like to edit.

2. Once in the QTR detail page click Correct This QTR.

1. Enter the fields that need to be changed.
2. To help maintain a reasonable audit trail an Explanation For Update should be entered when submitting a Manual QTR correction.
3. Click Save

Automated QTR corrections

Whenever a Meter Parameter or Gas Composition is edited and back-dated, the Smart-Alek system automatically updates the Hourly and Daily QTR's that are affected. When a Flow Parameter update is performed, the associated Event Log entry is included in the Corrected QTR details.

Corrected QTRs can be viewed, along with the original QTR, by clicking QTRs in the Options drop down in the Well Site Display. QTRs can be manually or automatically updated any number of times. However, only the most recently Corrected QTR values will be displayed and used in other displays, reports, and exports.

Exporting QTR data

To export QTR data go to the Data Export window.
