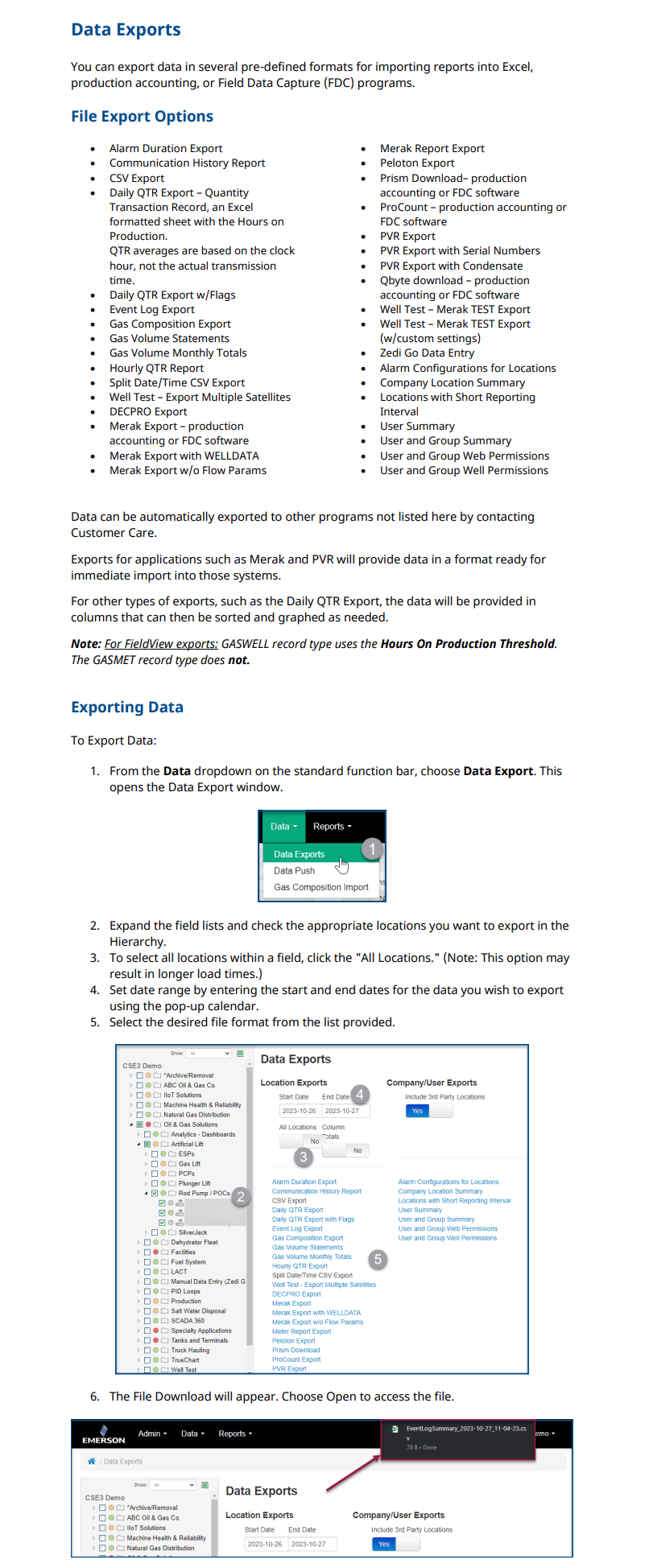

Data Export

You can export data in several pre-defined formats for importing reports into Excel, production accounting, or Field Data Capture (FDC) programs.

File Export Options

• Daily QTR Export – Quantity Transaction Record, an Excel formatted sheet with the Hours on Production.
  QTR averages are based on the clock hour, not the actual transmission time.
• Daily QTR Export w/Flags
• DECPRO Export
• WellTest - Merak TEST Export
• Merak – production accounting or FDC software
• PRISM – production accounting or FDC software
• Procount – production accounting or FDC software
• Qbyte – production accounting or FDC software
• CSV – Comma Separated Values – This file is formatted for import into Excel and shows every transmission and its time stamp going from the unit to the server. This is the "Raw" data listed in the Report Manager.
• Split Date/Time CSV
• FAS – ASCII file to import into well test software programs, such as Fekete Field Notes

Data can be automatically exported to other programs not noted here by contacting Customer Services & Support.

Exports for Merak, PVR, etc. will provide data in a format ready for import to those applications.

Other exports, such as Daily QTR Export, will provide data in columns that can then be sorted and graphed.

Note: For FieldView exports, the GASWELL record type uses the Hours On Production Threshold. The GASMET record type does not

Exporting Data

To export data:

1. Click Data Export from the Data drop down on the standard function bar.
   The Data Export window opens.
2. Expand the field lists and check the appropriate wells to export in the Hierarchy.
3. To select all wells in a field, click the "All Locations." (This will have a longer load time)
4. Enter the start and end dates for which you want the data exported, using the pop up calendar.
5. Choose the file format you wish to export from the list.

6. The File Download will display. Select to open.
