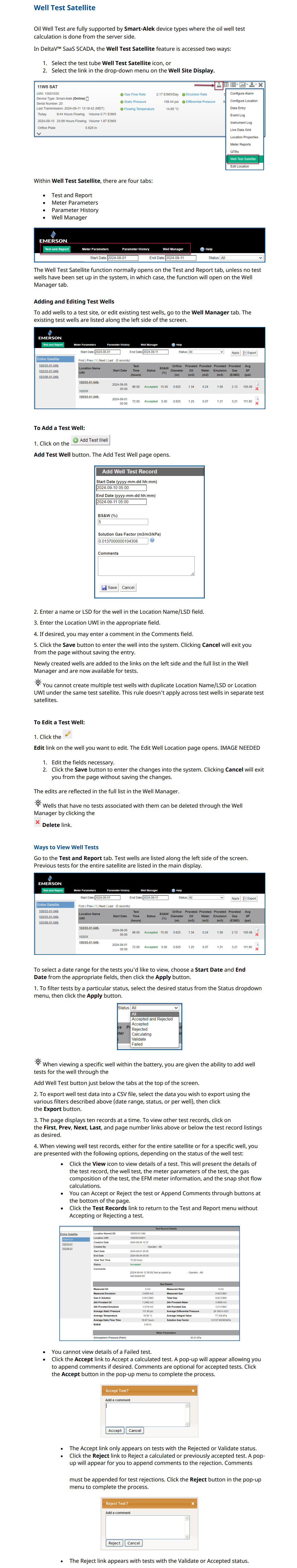

Well Test Satellite

Youtube video

Oil Well Test are fully supported by Smart-Alek device types where the oil well test calculation is done from the server side.
In Zedi Access, the Well Test Satellite feature is accessed two ways:
  1. by clicking on the test tube Well Test Satellite icon, or
  2. by clicking the link in the drop-down menu on the Well Site Display.Image 433
Within Well Test Satellite, there are four tabs:
  1. Test and Report
  2. Meter Parameters
  3. Parameter History
  4. Well Manager

Image 434

The Well Test Satellite function normally opens on the Test and Report tab, unless no test wells have been set up in the system, in which case, the function will open on the Well Manager tab.

Adding and Editing Test Wells
To add wells to a test site, or edit existing test wells, go to the Well Manager tab. The existing test wells are listed along the left side of the screen.

Image 1267


To Add a Test Well:
1. Click on the

Image 436

Add Test Well button. The Add Test Well page opens.

Image 438

2. Enter a name or LSD for the well in the Location Name/LSD field.
3. Enter the Location UWI in the appropriate field.
4. If desired, you may enter a comment in the Comments field.
5. Click the Save button to enter the well into the system. Clicking Cancel will exit you from the page without saving the entry.
Newly created wells are added to the links on the left side and the full list in the Well Manager and are now available for tests.

Image 439

You cannot create multiple test wells with duplicate Location Name/LSD or Location UWI under the same test satellite. This rule doesn't apply across test wells in separate test satellites.

To Edit a Test Well:
1. Click the pencil.

Image 1269

Edit link on the well you want to edit. The Edit Well Location page open.


Image 1268

  1. Edit the fields necessary.
  2. Click the Save button to enter the changes into the system. Clicking Cancel will exit you from the page without saving the changes.
The edits are reflected in the full list in the Well Manager.

Image 441

Wells that have no tests associated with them can be deleted through the Well Manager by clicking the

Image 442

Delete link.

Ways to View Well Tests
Go to the Test and Report tab. Test wells are listed along the left side of the screen. Previous tests for the entire satellite are listed in the main display.

Image 443


To select a date range for the tests you'd like to view, choose a Start Date and End Date from the appropriate fields, then click the Apply button.
1. To filter tests by a particular status, select the desired status from the Status dropdown menu, then click the Apply button.

Image 444



Image 445

When viewing a specific well within the battery, you are given the ability to add well tests for the well through the
Add Well Test button just below the tabs at the top of the screen.
2. To export well test data into a CSV file, select the data you wish to export using the various filters described above (date range, status, or per well), then click the Export button.
3. The page displays ten records at a time. To view other test records, click on the First, Prev, Next, Last, and page number links above or below the test record listings as desired.
4. When viewing well test records, either for the entire satellite or for a specific well, you are presented with the following options, depending on the status of the well test:
    • Click the View icon to view details of a test. This will present the details of the test record, the well test, the meter parameters of the test, the gas composition of the test, the EFM meter information, and the snap shot flow calculations.
    • You can Accept or Reject the test or Append Comments through buttons at the bottom of the page.
    • Click the Test Records link to return to the Test and Report menu without Accepting or Rejecting a test.
      Image 447 You cannot view details of a Failed test.
    • Click the Accept link to Accept a calculated test. A pop-up will appear allowing you to append comments if desired. Comments are optional for accepted tests. Click the Accept button in the pop-up menu to complete the process.
      Image 448
    • The Accept link only appears on tests with the Rejected or Validate status.
    • Click the Reject link to Reject a calculated or previously accepted test. A pop-up will appear for you to append comments to the rejection. Comments must be appended for test rejections. Click the Reject button in the pop-up menu to complete the process.
      Image 449
    • The Reject link appears with tests with the Validate or Accepted status.

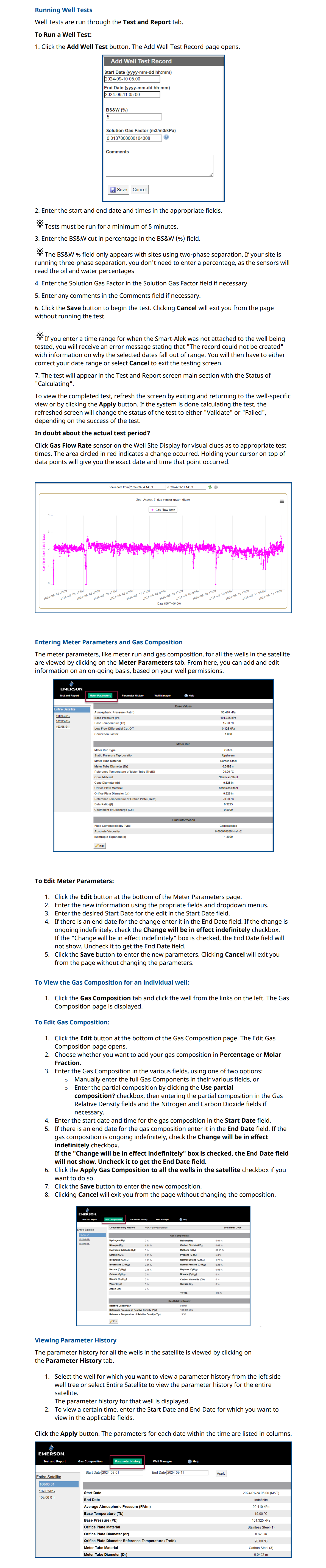

Running Well Tests
Well Tests are run through the Test and Report tab.
To Run a Well Test:
1. Click the Add Well Test button. The Add Well Test Record page opens.

Image 450

2. Enter the start and end date and times in the appropriate fields.

Image 451

Tests must be run for a minimum of 5 minutes.
3. Enter the BS&W cut in percentage in the BS&W (%) field.

Image 452

The BS&W % field only appears with sites using two-phase separation. If your site is running three-phase separation, you don't need to enter a percentage, as the sensors will read the oil and water percentages
4. Enter the Solution Gas Factor in the Solution Gas Factor field if necessary.
5. Enter any comments in the Comments field if necessary.
6. Click the Save button to begin the test. Clicking Cancel will exit you from the page without running the test.

Image 453

If you enter a time range for when the Smart-Alek was not attached to the well being tested, you will receive an error message stating that "The record could not be created" with information on why the selected dates fall out of range. You will then have to either correct your date range, or select Cancel to exit the testing screen.
7. The test will appear in the Test and Report screen main section with the Status of "Calculating".
To view the completed test, refresh the screen by exiting and returning to the well-specific view or by clicking the Apply button. If the system is done calculating the test, the refreshed screen will change the status of the test to either "Validate" or "Failed", depending on the success of the test.
In doubt about the actual test period?
Click Gas Flow Rate sensor on the Well Site Display for visual clues as to appropriate test times. The area circled in red indicates a change occurred. Holding your cursor on top of data points will give you the exact date and time that point occurred.

Image 454


Entering Meter Parameters and Gas Composition
The meter parameters, like meter run and gas composition, for all the wells in the satellite are viewed by clicking on the Meter Parameters tab. From here, you can add and edit information on an on-going basis, based on your well permissions.

Image 455



To Edit Meter Parameters:

  1. Click the Edit button at the bottom of the Meter Parameters page.
  2. Enter the new information using the propriate fields and dropdown menus.
  3. Enter the desired Start Date for the edit in the Start Date field.
  4. If there is an end date for the change enter it in the End Date field. If the change is ongoing indefinitely, check the Change will be in effect indefinitely checkbox.
    If the "Change will be in effect indefinitely" box is checked, the End Date field will not show. Uncheck it to get the End Date field.
  5. Click the Save button to enter the new parameters. Clicking Cancel will exit you from the page without changing the parameters.
To View the Gas Composition for an individual well:
  1. Click the Gas Composition tab and click the well from the links on the left. The Gas Composition page is displayed.
To Edit Gas Composition:
  1. Click the Edit button at the bottom of the Gas Composition page. The Edit Gas Composition page opens.
  2. Choose whether you want to add your gas composition in Percentage or Molar Fraction..
  3. Enter the Gas Composition in the various fields, using one of two options:
    • Manually enter the full Gas Components in their various fields, or
    • Enter the partial composition by clicking the Use partial composition? checkbox, then entering the partial composition in the Gas Relative Density fields and the Nitrogen and Carbon Dioxide fields if necessary.
  4. Enter the start date and time for the gas composition in the Start Date field.
  5. If there is an end date for the gas composition enter it in the End Date field. If the gas composition is ongoing indefinitely, check the Change will be in effect indefinitely checkbox.
    If the "Change will be in effect indefinitely" box is checked, the End Date field will not show. Uncheck it to get the End Date field.
  6. Click the Apply Gas Composition to all the wells in the satellite checkbox if you want to do so.
  7. Click the Save button to enter the new composition.
  8. Clicking Cancel will exit you from the page without changing the composition.

Image 457


Viewing Parameter History
The parameter history for all the wells in the satellite is viewed by clicking on the Parameter History tab.
  1. Select the well for which you want to view a parameter history from the left side well tree or select Entire Satellite to view the parameter history for the entire satellite.
    The parameter history for that well is displayed.
  2. To view a certain time period, enter the Start Date and End Date for which you want to view in the applicable fields.
Click the Apply button. The parameters for each date within the time period are listed in columns.

Image 458
