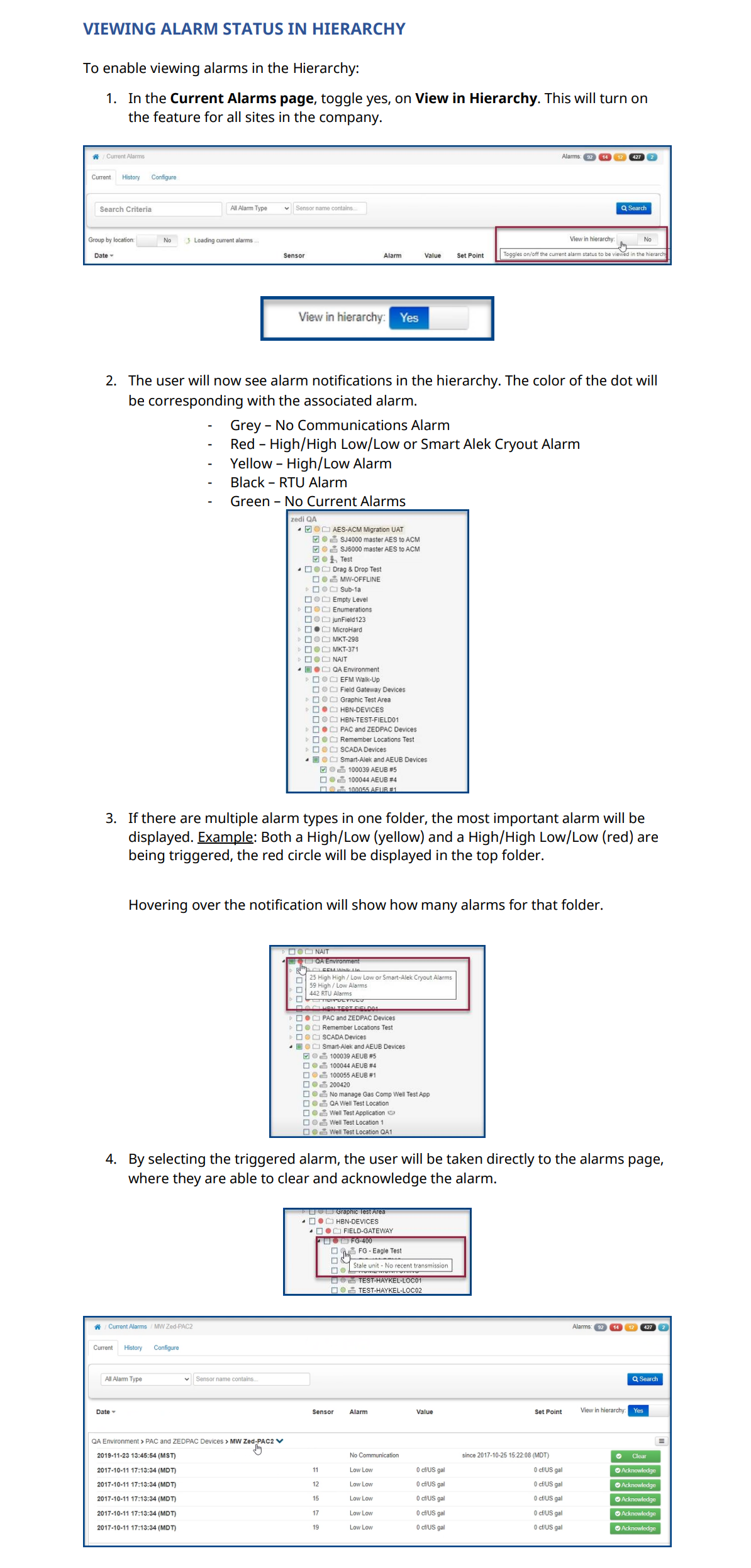

Viewing Alarm Status in Hierarchy

Users can view the status of a triggered alarm in the hierarchy of the home page.

To enable viewing alarms in the Hierarchy:

1. In the Current Alarms page, toggle yes, on View in Hierarchy. This will turn on the feature for all sites in the company.

2. The user will now see alarm notifications in the hierarchy. The color of the dot will be corresponding with the associated alarm.

• Grey – No Communications Alarm
• Red – High/High Low/Low or Smart Alek Cryout Alarm
• Yellow – High/Low Alarm
• Black – RTU Alarm
• Green – No Current Alarms

3. If there are multiple alarm types in one folder, the most important alarm will be displayed. Example: Both a High/Low (yellow) and a High/High Low/Low (red) are being triggered, the red circle will be displayed in the top folder.

Hovering over the notification will show how many alarms for that folder.

4. By selecting the triggered alarm, the user will be taken directly to the alarms page, where they are able to clear and acknowledge the alarm.
