Acknowledging Alarms
ACKNOWLEDGING ALARMS

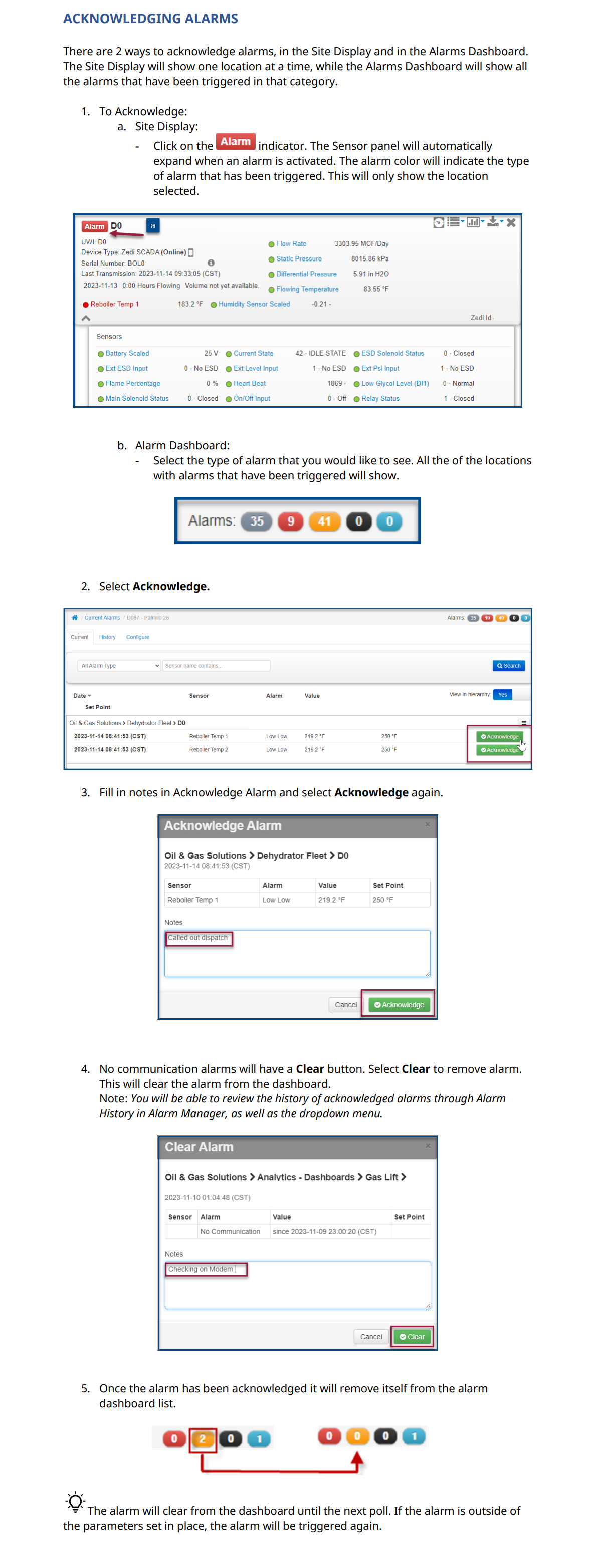

There are 2 ways to acknowledge alarms, in the Well Site Display and in the Alarms Dashboard. The Well Site Display will show one location at a time, while the Alarms Dashboard will show all the alarms that have been triggered in that category.
1. To Acknowledge:
a. Well Site Display:
- Click on the indicator. The Sensor panel will automatically expand when an alarm is activated. The alarm color will indicate the type of alarm that has been triggered. This will only show the location selected.
b. Alarm Dashboard:
- Select the type of alarm that you would like to see. All the of the locations with alarms that have been triggered will show.
2. Select Acknowledge.
3. Fill in notes in Acknowledge Alarm and select Acknowledge
again.
4. Once issue has been resolved, select clear and fill in notes in Clear Alarm. Select Clear to remove alarm.
Note: You will be able to review the history of acknowledged alarms through Alarm History in Alarm Manager, as well as the dropdown menu.
5. Once the alarm has been acknowledged it will remove itself from the alarm dashboard list.
